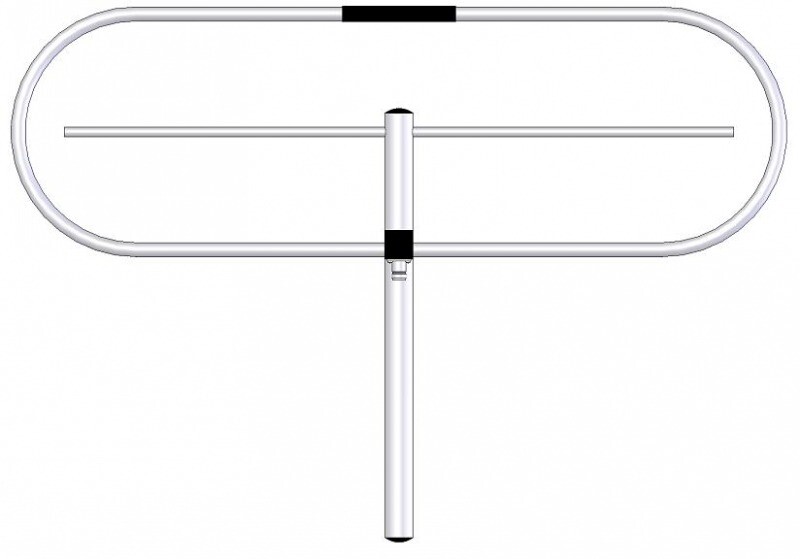

The ZZ201 base antenna is an omni-directional (omni) antenna designed for the 150-175 MHz band. The antennas are
welded from aluminum alloy and protected with varnish. For lightning protection, it is provided by a galvanic connection. It is resistant to icing and wind up to 150 km / h. The antenna gain is 2.5dBd, which corresponds to 4.65 dBi. The coaxial cable is connected with an N-type connector. The antenna is durable, reliable and used in hundreds of applications.
Antenna ZZ201 technical parameters
| Frequency band (MHz) | 150-174 |
| Gain (dBd) | 2,5 |
| Radiation angle in the H – plane | 180 ° |
| Radiation angle in the E – plane | 100 ° |
| Anteroposterior ratio | 6 dB |
| Standing wave voltage factor | <1,5 |
| Nominal impedance | 50 Ohm |
| Polarization | vertical |
| Maximum performance | 1000 W |
| Dimensions | 920 x 760 x 80 mm |
| Connector | N |
| Mass | 1.4 kg |
| Wind resistance | 150 km / h |

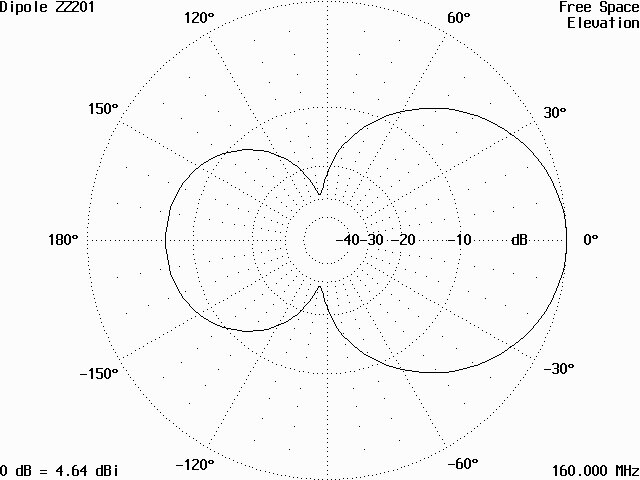

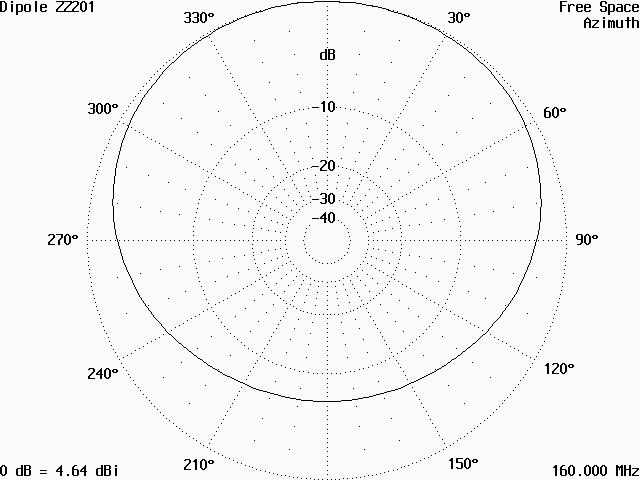

Radiation diagrams of antenna ZZ201
