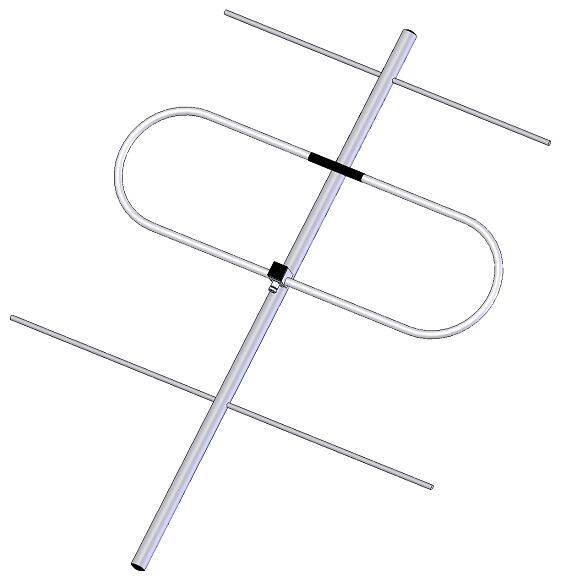

ZZ203 is a directional antenna designed for the band 150-175 MHz. The antenna is welded from
aluminum alloy and protected by varnish. The gain is 4 dBd, which corresponds to 6.15 dBi. Lightning protection is provided by a galvanic connection. The coaxial cable is connected using an N-type connector. ZZ203 is resistant to icing and wind up to 150 km / h. Antennas are durable, reliable and used in hundreds of applications.
Antenna ZZ203 technical parameters
| Frequency band (MHz) | 150-174 |
| Gain (dBd) | 4 |
| Radiation angle in the H – plane | 120 ° |
| Radiation angle in the E – plane | 70 ° |
| Anteroposterior ratio | 18 dB |
| Standing wave voltage factor | <1,5 |
| Nominal impedance | 50 Ohm |
| Polarization | vertical |
| Maximum performance | 1000 W |
| Dimensions | 920 x 1500 x 80 mm |
| Connector | N |
| Weight2.3 | 2.3 kg |
| Wind resistance | 150 km / h |

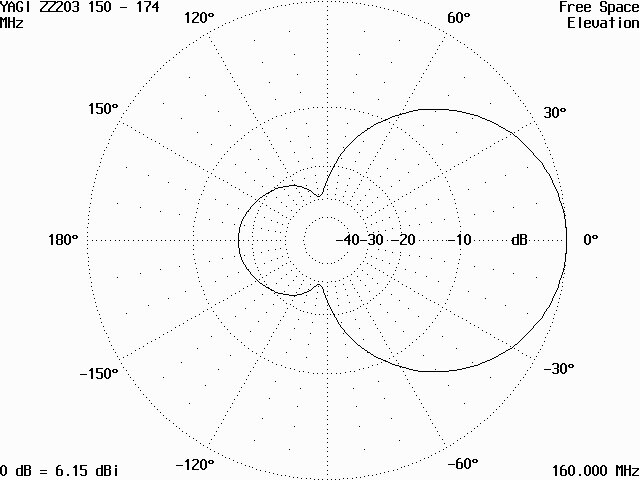

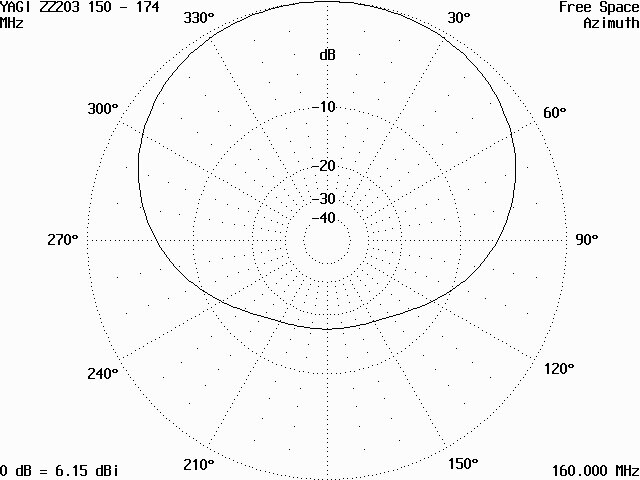

Radiation diagrams of antenna ZZ203
